Brand Name : MK
Model Number : MCS-SIM
Place of Origin : China
MOQ : 20000 sheets or 2 tons
Price : Negotiable
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 10-15 million square meters per month
Delivery Time : 10-15 work days
Packaging Details : 100 or 200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets
Thickness : 0.10 - 0.50 mm
Density : 1.38±0.05
Tensile strength Horizontal : ≥ 45 MPa
Tensile strength Vertical : ≥ 48 MPa
Vicat : 70±2 C. degrees
Surface Dyne : ≥ 34 dynes / cm
PVC core sheet or base sheet for Contactless IC cards Prelam or INLAY
Product Technical Specification
| 1. Introduction of PVC core sheet or base sheet for Contactless IC cards Prelam or INLAY |
PVC core sheet or base sheet for Contactless IC cards or Prelam or INLAY sheet ( PVC sheet for RFID card Prelam or INLAY sheet production )
is specially designed for INLAY sheet production of Contactless or RFID Card. It is featuring lower vicat softening point, which can provide good protection on chips inside during the process of laminator grading lamination process. It is known as the high-end reliable PVC sheet for various contactless or RFID cards.
| 2.Specification of PVC core sheet or base sheet for Contactless IC cards Prelam or INLAY |
| Item | Unit | Value | |
| Density | g/cm3 | 1.38±0.05 | |
| Tensile Strength | Horizontal | MPa | ≥45 |
| Vertical | ≥48 | ||
| Vicat 5kg | ℃ | 70±2 | |
| Surface Roughness | Ra | μm | 0.7~1.8 |
| Rz | 4.0~12.0 | ||
*Customized design is availalbe.

| 3. Applications of PVC core sheet or base sheet for Contactless IC cards Prelam or INLAY |
The PVC Sheets are widely used for prelam or INLAY sheet which will be used for contactless card production.

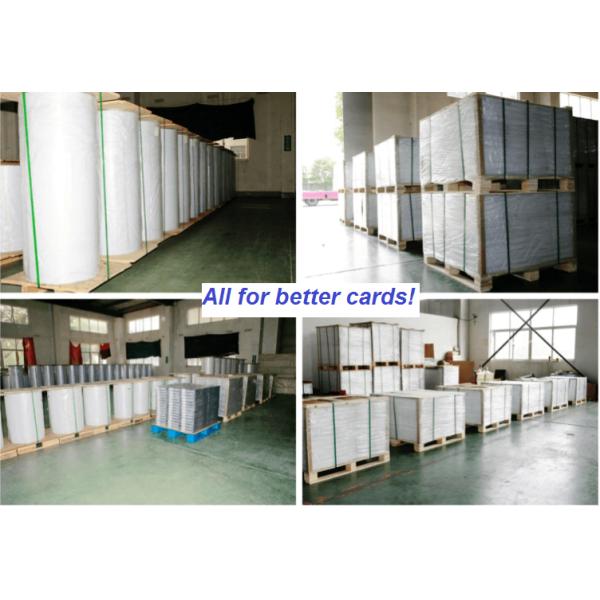

| 4. Packging and storage of PVC core sheet or base sheet for Contactless IC cards Prelam or INLAY |

|   |
